Build Your Own Melody Door Ringer Circuit – 7413 & BC550
Description
Within numerous residences, chime mechanisms are commonly found at entrances. Individuals are granted the ability to adjust both the amplitude and pitch of these sounds. This particular circuit offers precisely that functionality. Utilizing materials surrounding the entrance, a variety of frequencies – approximately 5 kHz and 2 kHz – can be generated. The circuit’s operation is dependent on the momentary press of a switch. Concurrently with the auditory signal, a visual indication is provided by the LED D2. By altering the capacitance values of capacitors C2 and C3, which vary in price and capacity, distinct sounds are produced.

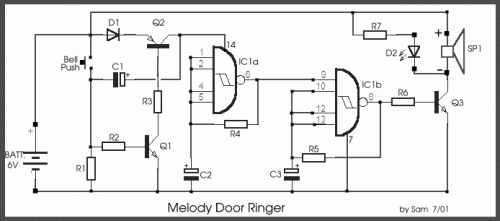

Circuit Diagram
Part List
- R1=470Kohm
- R2=22Kohm
- R3=3.9Kohm
- R4-5=330 ohm
- R6=2.2Kohm
- R7=1.2Kohm
- C1=22uF 25V
- C2=470uF 25V
- C3=1 uF 25V
- D1=1N4001
- D2=LED RED 3mm
- IC1=7413
- Q1-3= BC 550
- Q2= BC 560
- BATT=4X1,5V or external pack 6Vdc
- SP= Speaker 8R /0,5W
All Resistors are 1/4W 5%
