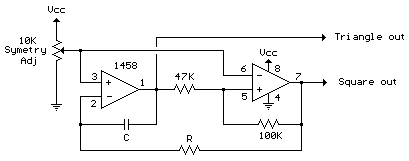

Circuit Diagram

A straightforward triangle/squarewave generator is presented here, leveraging a frequently utilized 1458 dual operational amplifier. This circuit can accommodate a broad spectrum of frequencies, ranging from very low levels up to approximately 10 kHz. The duration of one cycle is roughly determined by the product of R and C, while the outputs deliver approximately 10 milliamps of electrical current. The peak amplitude of the triangle waveform can be modified by adjusting the 47K resistor, and the waveform’s offset can be eliminated by integrating a capacitor into the circuit in series with the output.

Dual Operational Amplifier (1458)

A dual operational amplifier, specifically the 1458 model, is a versatile integrated circuit designed for amplifying and filtering electrical signals. This IC typically incorporates two independent operational amplifiers within a single package, offering increased flexibility and reducing component count in circuit designs. The 1458 model is known for its relatively high gain and stability, making it suitable for various applications, including signal conditioning, instrumentation, and audio circuits. Its core function lies in amplifying the difference between two input voltages, while maintaining a stable output signal. It frequently appears in circuits where precise voltage amplification is required, alongside features such as input offset nulling and temperature compensation. [/P]
