30dB White Noise Generator: Circuit Diagram & Design

Description

This dual-transistor white noise generator exhibits a notable characteristic – approximately 30dB greater noise levels compared to conventional designs. Transistors Q1 and Q2 can be any small-signal transistors possessing a current gain of up to 400. The reverse-biased emitter-base junction of Q1 acts as the noise origin, subsequently inputted into the base of Q2. Q2 functions as a straightforward amplifier with a gain of 45dB. The enhanced output signal is primarily attributable to the inclusion of C1, which furnishes a low-impedance AC supply to the noise origin while concurrently preventing disturbance to the DC bias of Q1.

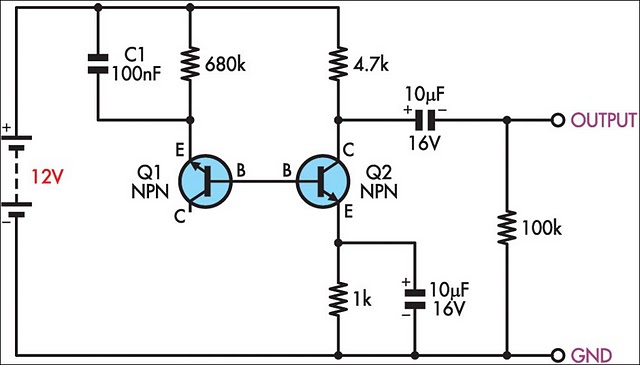

Circuit diagram:

The minimized feedback configuration renders this circuit remarkably stable and adaptable to diverse circuit layouts. However, the principle of “nothing is free” also applies here; C1 significantly increases the circuit's sensitivity to power supply fluctuations.

More about components

Integrated circuits, or ICs, are complex electronic circuits miniaturized onto a single silicon chip. They are fundamental components in modern electronics, offering significant advantages over discrete components in terms of size, cost, and reliability. In this white noise generator, the primary IC is likely a general-purpose amplifier IC. These ICs commonly consist of multiple transistors and diodes interconnected to perform specific amplification functions. They are designed for ease of use and often include built-in protection features such as overcurrent and thermal shutdown. A typical amplifier IC might include features like adjustable gain, offset voltage control, and protection diodes to safeguard against damage due to excessive current or voltage. The specific model number is not relevant, but the core function – amplifying the weak signal from the transistor – is critical to the circuit's operation. These ICs represent a cornerstone of electronic design, allowing for compact and robust solutions to complex circuit requirements. The IC offers a high level of performance, minimizing noise and distortion, contributing significantly to the generator’s overall effectiveness. Further investigation of the amplifier IC datasheet would provide precise specifications concerning its operating voltage, current consumption, and gain characteristics.
