741 Op-Amp Continuity Tester Circuit Diagram

Description:

A low resistance ( 0.25 - 4 ohm) continuity tester is provided for verifying soldered connections and electrical links. This device facilitates the assessment of connections by measuring the resistance between two points.

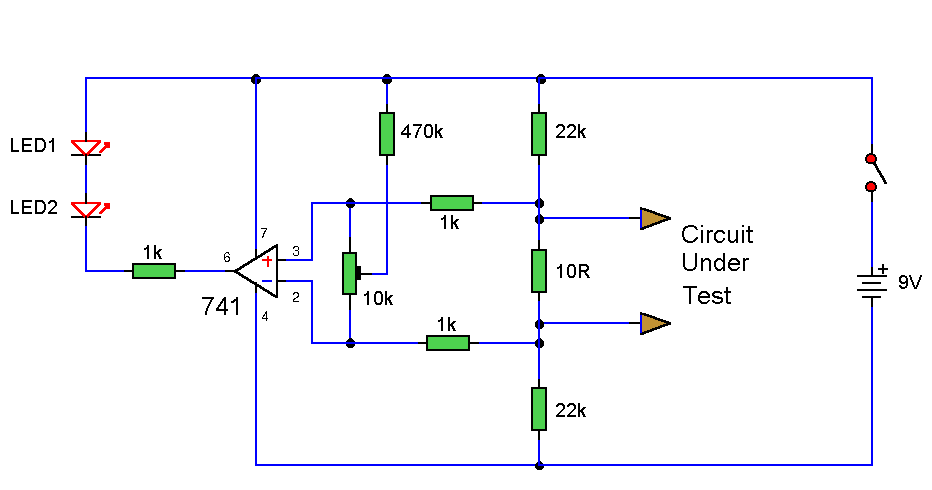

Circuit Diagram

Notes:

This uncomplicated circuit utilizes a 741 operational amplifier in a differential configuration as a continuity tester. The difference in voltage between the non-inverting and inverting inputs is magnified through the full open-loop gain of the operational amplifier. For the time being, disregard the 470k and the 10k control elements, and concentrate on the operational amplifier’s input. If the resistors were perfectly matched, then the voltage differential would be zero and the output would also be zero. However, the inclusion of the 470k and 10k control enables a small voltage difference to be applied to the operational amplifier's inputs, upsetting the circuit's equilibrium. This voltage amplification causes the operational amplifier’s output to swing to the full supply voltage, illuminating the LEDs.

Setting Up and Testing:

The test probes should initially be connected to a resistor having a value ranging from 0.22 ohm to 4 ohm. The control is adjusted until the LEDs just activate with the resistance across the probes. The resistor should then be removed and the probes shorted, and the LEDs should extinguish. Due to the exceptionally low resistance value, it is essential that the probes – whether crocodile clips or needles, etc. – remain clean, otherwise dirt can increase contact resistance and cause the circuit to function incorrectly. The circuit operates effectively with a MOSFET-type operational amplifier, such as CA3130, CA3140, and JFET types, for example, LF351. If the LEDs will not turn off, then a 10k preset should be wired across the offset null terminals, pins 1 and 5, the wiper of the control being connected to the negative battery terminal. A pin out for the 741 can also be found on my practical section.

741 Operational Amplifier

The 741 is a widely utilized integrated circuit (IC) known as a general-purpose operational amplifier. These ICs are characterized by their versatility and are extensively used in a diverse array of analog circuits. The 741 specifically offers a full-featured output stage for switching applications and a high input impedance. It’s a bipolar junction transistor (BJT) integrated circuit and can operate at several different supply voltages, typically ±15V, ±12V, or ±5V. They are frequently employed in circuits for amplification, filtering, and signal conditioning. Because of its popularity, numerous variants exist, including low-power versions and versions optimized for specific applications.
