Build Your Own LH0032 Video Amplifier Circuit Diagram

Part List

  • R1= 15 kiloohms plus 15 kiloohms
  • R2-4= 10 kiloohms
  • R5 to 9= 1 kiloohm
  • R10= 820 ohms
  • R11= 1 megohm
  • R12= 100 ohms trimmer
  • R13 to 15= 47 ohms
  • R14= 10 kiloohms
  • C1= 10 microfarads 63 volts MKT
  • C2 to 4= 100 nanofarads 63 volts
  • C5= 4.7 picofarads ceramic
  • IC1= LH0032
  • S1= 1X2 miniature switch
  • S2= 1X6 selection
  • J1-2= BNC connector

Circuit diagrams

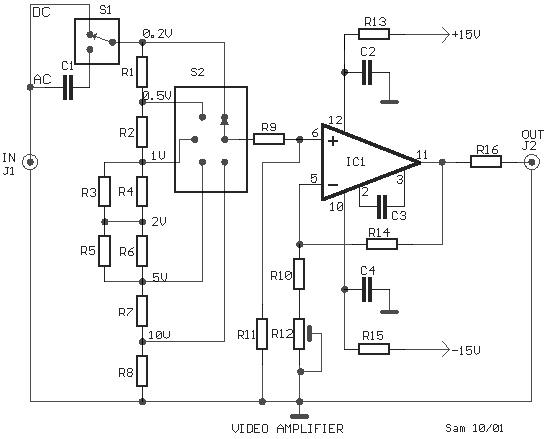

Circuit diagram

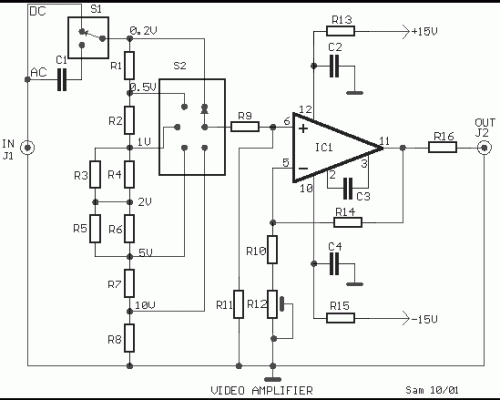

Circuit diagram

Integrated Circuit Details

The LH0032 is a general-purpose operational amplifier (op-amp) IC. It's a three-terminal integrated circuit that can amplify and buffer electronic signals. These op-amps are widely used in various analog circuits, including amplifiers, filters, and oscillators. They are known for their relatively low input bias and offset currents and low input capacitance, which makes them suitable for high-speed applications. They operate over a wide supply voltage range and offer excellent stability. The device utilizes a dual-complementary symmetry (DCS) input stage for superior noise performance. [/=h3]
circuit from http://users.otenet.gr/~athsam/video_amplifier_1.htm
