LM359N Video Amplifier Circuit Diagram: Build Your 1Kohm Design

This collection of electronic circuit diagrams offers a diverse range of designs, carefully curated for educational purposes and practical application. The following components are utilized across these diagrams, enabling a thorough understanding of various circuit configurations.

Part List

  • R1=1Kohm
  • R2-6=12Kohm
  • R4-5-6=10Kohm
  • C1=10nF 100V
  • C2-6=100uF 25V
  • C3=100nF 100V
  • C4=1pF ceramic
  • C5=10nF 100V
  • C6=100uF 25V
  • IC1=LM359N
  • J1-2=BNC connector

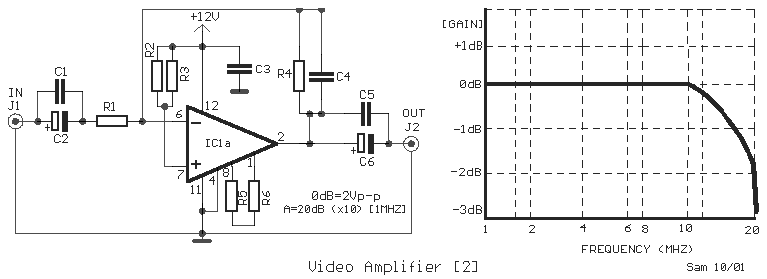

Circuit Diagram

Circuit diagram
circuit from http://users.otenet.gr/~athsam/video_amplifier_2.htm
