Build a 4-Digit Keypad Switch Circuit with a Secure Code

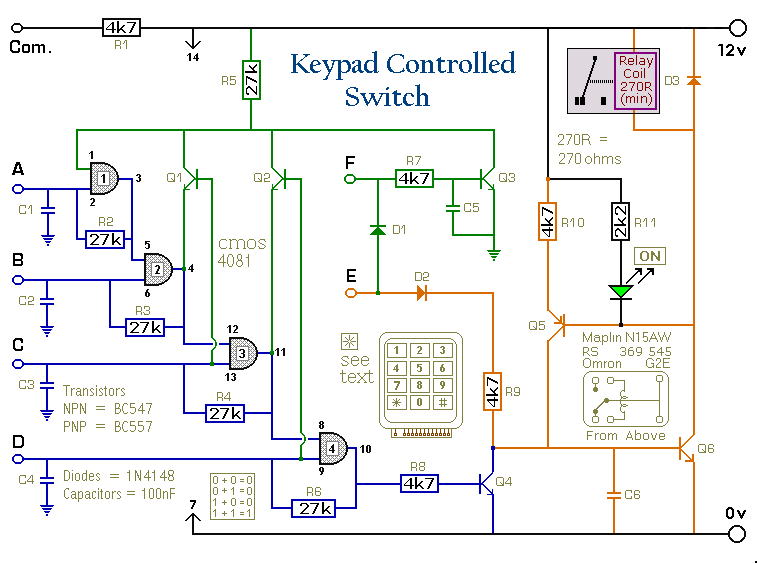

Schematic Diagram

IMPORTANT!!!

It is not permissible to utilize the “on-board” relay for switching mains voltage. The board’s design lacks sufficient insulation between the relay contacts and the low-voltage components. If mains voltage switching is required – the relay should be mounted in a safe location – Away From The Board.

Notes

The relay receives power by pressing a single button. Select the desired button – and connect it to terminal "E". Choose the four buttons used for de-energizing the relay – and connect them to "A B C & D". The common terminal should be connected to R1 and all remaining buttons to "F".

This circuit is straightforward. When button "E" is pressed, current flowing through D2 & R9 activates Q6 – and energizes the relay. The two transistors – Q5 & Q6 – constitute a “Complementary Latch”. Consequently, the relay remains powered until the buttons are released.

To deactivate the relay, the buttons "A B C & D" must be pressed in the correct sequence. When a button is pressed, pin 10 of the IC becomes high – and it turns Q4 on through R8. Q4 connects the base of Q6 to ground, disengaging the complementary pair and causing the relay to drop out.

Any buttons not connected to “A B C D & E” are connected to the base of Q3 by R7. Should one of these “Incorrect” buttons be pressed, Q3 takes pin 1 low, and the code entry fails. If “C” or “D” are pressed out of order, Q1 or Q2 will also take pin 1 low – with the identical result. If an error occurs during code entry, simply restart the process.

The Keypad should be the type featuring a common terminal and an individual connection for each button. For a 12-key pad, look for 13 terminals. A matrix-style keypad with 7 or 8 terminals will not function correctly. With a 12-key pad, over 10,000 distinct codes are accessible. To establish a more secure code, use a larger keypad with more “Incorrect” buttons wired to “F”. A 16-key pad provides over 40,000 different codes.
