Build a 500Hz-2Khz Notch Filter with 0.1uF & 1.5K Resistors

Description

The dual T-notch filter can be employed to suppress undesirable frequencies or utilized as a bandpass filter when positioned around an operational amplifier. The notch's frequency occurs when the capacitive reactance equals the resistance (Xc=R), and with closely matched values, substantial attenuation and a nearly nonexistent notch frequency can be achieved. The filter’s insertion loss will be affected by the connected load, necessitating resistors of significantly lower values than the load to minimize losses. At audio frequencies, this filter could operate as a bass and treble enhancement circuit by attenuating the middle frequencies. Employing 1.5K resistors and 0.1uF capacitors, the band stop’s frequency range is approximately 500 Hz to 2Khz. The response's depth and breadth can be modulated slightly via the 0.5R value and by incorporating resistance across the C values. If the circuit is implemented around an op-amp as a bandpass filter, the response may require damping to prevent oscillation.

Operational Amplifiers

Operational amplifiers, frequently referred to as op-amps, are integrated circuits designed to amplify either voltage or current signals. These versatile components are fundamental in countless electronic circuits, offering precise amplification, buffering, and signal processing capabilities. A typical op-amp incorporates a differential input stage, a gain-setting network, and an output stage, enabling it to handle a wide range of input and output signals. When utilized as a bandpass filter around an op-amp, it is crucial to carefully adjust the circuit parameters to avoid unwanted oscillation, which can degrade signal quality and potentially damage the components. The damping effect ensures a stable and predictable response, preventing instability and maintaining the intended filtering characteristics. Moreover, selecting an op-amp with sufficient bandwidth and slew rate is essential for accurately reproducing the desired frequency response. Different op-amps can have varying performance characteristics, so choosing the appropriate one for the specific application is vital for optimal circuit behavior.

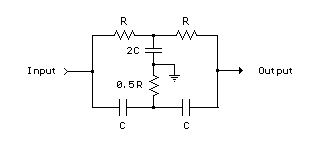

Circuit diagram
