74C14 Peak Indicator Circuit: Build Your Audio Level Meter

Description

A signal monitoring device designed to demonstrate when a waveform surpasses a predetermined maximum value. Such devices are notably beneficial in applications like audio tape recorders and mixing consoles. A fundamental necessity for any peak level monitor is its responsiveness to brief, transient signals. The circuit implementation utilizes a CMOS inverting Schmitt trigger, specifically the 74C14 integrated circuit. The input impedance of this indicator is relatively high, varying somewhat based on the positioning of TR1. The device operates as follows: The input is half-wave rectified via D1. Upon the voltage across R1 exceeding the upper trigger threshold, a logic HIGH level is generated at the output of the second Schmitt trigger. The trigger level is contingent on the power supply voltage. With a 5V supply, the trigger level is set at 3.6V. The positive pulse originating from the second trigger is fed back to the input through C2. If the input signal is particularly short, the logic HIGH level will persist during the charging period of C2. This charging time is dictated by the values of C2 and R1. During this time, the output of the third trigger is logic LOW, causing the RED LED (D4) to illuminate, signifying that the input signal has exceeded the permissible level. The TR1 trimmer is carefully adjusted to establish the optimal maximum level at which the peak indicator begins its operation.

74C14 Integrated Circuit

The 74C14 is a versatile CMOS logic integrated circuit. It is a four-stage Schmitt trigger, offering both inverting and non-inverting configurations. This IC is characterized by its ability to produce clean, stable logic levels even when the input signal is noisy or rapidly transitioning. It’s widely utilized in signal conditioning, noise filtering, and level shifting applications. Its key features include hysteresis, adjustable trigger levels, and a high operating frequency, making it suitable for a wide range of circuit designs. The 74C14's Schmitt trigger action provides immunity to switching noise, ensuring reliable operation in challenging environments. It typically operates with a supply voltage of 3V to 15V and is available in various package options for easy integration into circuit boards. The IC's performance characteristics are highly predictable, allowing for precise design and tuning of circuits. Its digital nature, combined with its robust switching capabilities, makes it a valuable component in many electronic systems. It's commonly used for creating stable switching thresholds and for implementing logic gates with improved noise immunity. The 74C14 is readily available from numerous electronic component suppliers and is a fundamental building block for many signal processing circuits. It’s a low-power device, contributing to energy efficiency in battery-powered applications. The IC’s operational characteristics are well-documented, facilitating easy design and troubleshooting. The IC's symmetrical output response contributes to its noise immunity, making it ideal for applications where signal integrity is critical. Its relatively small footprint also makes it suitable for space-constrained designs. Furthermore, the 74C14 is a robust and reliable component, known for its long lifespan and consistent performance.

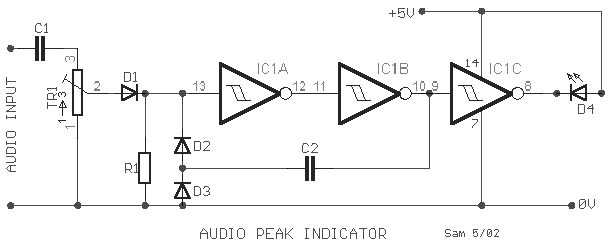

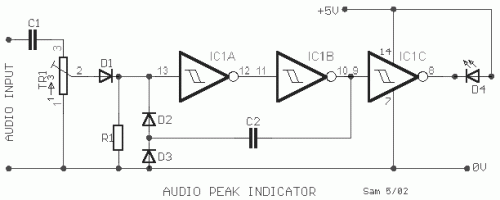

Circuit diagram
