Build Your 12V Headlight Reminder Circuit with a Buzzer

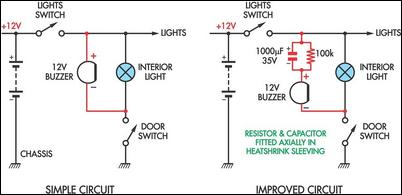

Circuit diagram:
Description
These two headlight reminder circuits are straightforward to implement and function according to the KISS (Keep It Simple Stupid) methodology. The uncomplicated circuit consists of inserting a 12V piezo buzzer between the lighting circuit and a door switch. The buzzer activates if the lights are left on and a door is opened. A drawback of this basic circuit is that the buzzer emits a continuous sound, which can be irritating when the door is kept open with the lights on. The enhanced circuit addresses this issue by incorporating a 1000µF capacitor and a parallel 100kO resistor in series with the buzzer. Consequently, when a door is opened, the buzzer produces a momentary burst of sound, while the 1000µF capacitor charges. The 100kO resistor then discharges the capacitor when the lights are switched off.
Piezo Buzzer
A piezo buzzer is a transducer that converts electrical energy into sound energy. It consists of a piezoelectric ceramic material, typically lead zirconate titanate (PZT), which generates a high-voltage electrical charge when subjected to mechanical stress, such as vibration or pressure. This voltage then drives a small voice coil within the buzzer, creating audible sound waves. The characteristics of a piezo buzzer, including its frequency response and sound pressure level, are dependent on the properties of the piezoelectric material and the design of the buzzer. Commonly used in applications such as alarms, indicator lights, and audio signals. This specific buzzer operates at a voltage of 12V and offers a frequency response suitable for detecting door openings.
