Build Your Own PIC Servo Tester Circuit Diagram

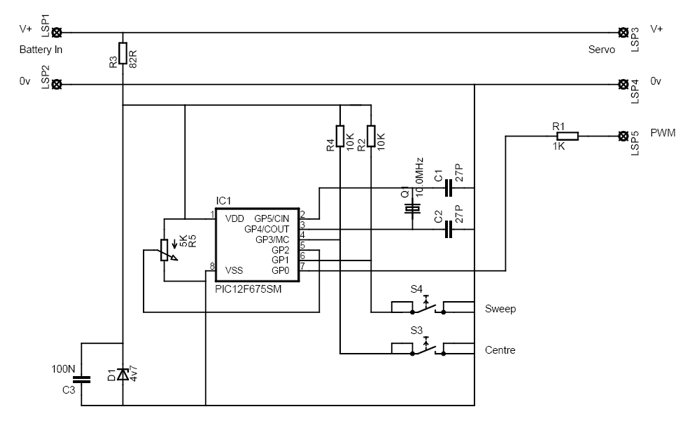

Circuit diagram

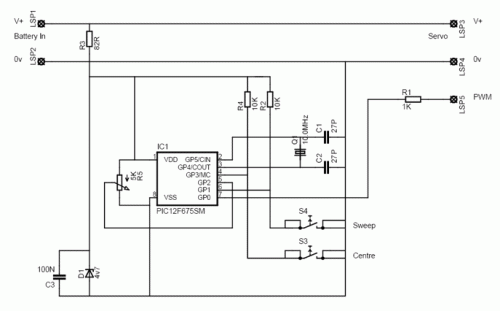

click here to download schematic in pdf This document presents a straightforward servo evaluation device designed to thoroughly assess the functionality of a wide variety of contemporary servos. The apparatus incorporates two buttons, labelled CENTRE and SWEEP, alongside a potentiometer operating as follows:

CENTRE activates the servo and establishes its center position; subsequently, the potentiometer regulates the position.
SWEEP facilitates the movement of the servo back and forth, with the velocity governed by the potentiometer’s setting.

The microcontroller leverages its internal timer to establish a consistent frame duration of 20 milliseconds, while the on/off ratio is configurable by the user.

Have Fun-Ed

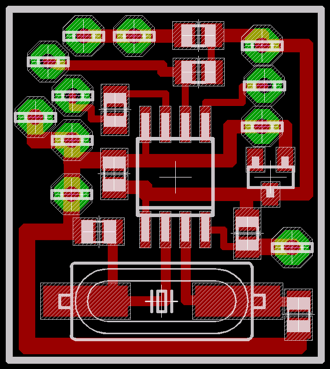

PCB board

suggested panel decal

Parts

R1 = 1K
R2 = 10K
R3 = 82R
R4 = 10K
R5 = 5K potentiometer
C1 = 27pF
C2 = 27pF
C3 = 100nF
D1 = 4.7V zener diode
Q1 = 10MHz crystal
IC1 = PIC12F675

Download assembly code (.asm)

Download PCB in Eagle format (.br )
