7 Watt TDA2003 Audio Amplifier Circuit Design

Description

This modest amplifier is built utilizing the TDA2003 integrated circuit, which can deliver 4 Watts RMS at 4 Ohms. The TDA2003 exhibits improved performance while maintaining the identical pin arrangement as the TDA2002. The added advantages of the TDA2002, including a minimal number of external components, simplified assembly, space reduction, and cost savings, are retained. The device provides substantial output current capabilities (reaching 3.5A) alongside exceptionally low harmonic and crossover distortion. Safe operation is assured through built-in safeguards against DC and AC short circuits between all pins and ground, thermal over-range conditions, load dump voltage surges up to 40V, and accidental ground openings. A standard direct current can be applied as a power supply.

TDA2003 Integrated Circuit

The TDA2003 is a three-stage audio amplifier integrated circuit designed for general-purpose applications. It operates in Class AB, providing high efficiency and good linearity. This IC typically includes preamplifiers and power amplifiers within a single package, simplifying circuit design. It commonly features features like thermal shutdown protection, short-circuit protection, and over-temperature shutdown to ensure reliable operation and prevent damage. Its key characteristics include a high current output capability and low distortion, making it suitable for various audio applications, particularly small-signal amplification. It is frequently used in portable audio equipment, car audio systems, and other applications requiring high-quality audio amplification.

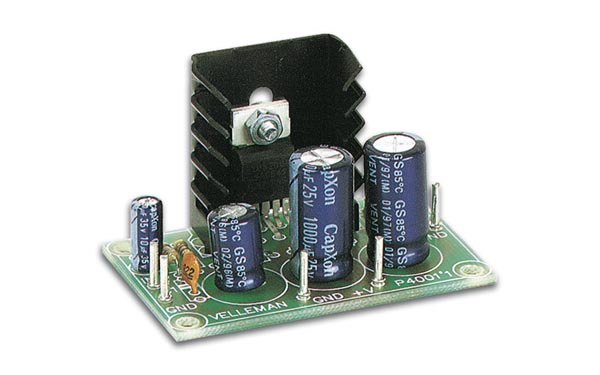

Circuit's picture:

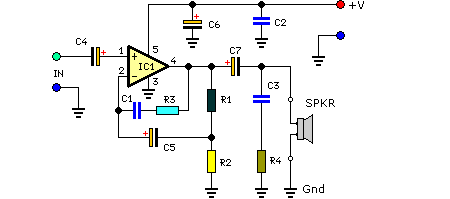

Circuit diagram:

Parts:

Specifications:
