Automatic Loudness Control Circuit: Design & Implementation

Description

To achieve optimal audio reproduction across a range of listening volumes, adjusting the tone-control settings is necessary to align with the non-linear sensitivity patterns of the human ear. Specifically, the auditory system exhibits varying sensitivity throughout the audible frequency spectrum, as depicted by the Fletcher-Munson curves.

A straightforward approach to address this issue involves incorporating a circuit within the preamplifier stage, designed to automatically modify the overall audio chain’s frequency response based on the control knob’s position, maintaining ideal listening conditions at differing volumes.

Fortunately, the human ear is not overly demanding, and a relatively simple circuit can provide a satisfactory performance within a 40dB range. The circuit is illustrated with SW1 in the “Control-flat” position, meaning without the Automatic Loudness Control. In this setting, the circuit functions as a linear preamplifier stage, with the voltage gain determined by the Trimmer R7.

When switching SW1 to the opposite position, the circuit transforms into an Automatic Loudness Control, and its frequency response adapts to the control knob’s position as shown in the table below. C1 emphasizes lower frequencies, while C4 accentuates higher frequencies. Maximum low-frequency boost is constrained by R2, and R5 similarly limits high-frequency boosts.

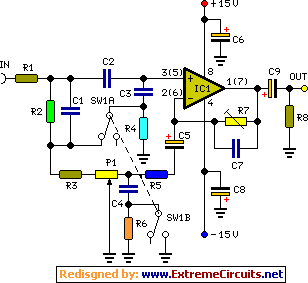

Circuit diagram:

Circuit diagram

Parts:

  • P1_________________10K Linear Potentiometer (Dual-gang for stereo)
  • R1,R6,R8__________100K 1/4W Resistors
  • R2_________________27K 1/4W Resistor
  • R3,R5_______________1K 1/4W Resistors
  • R4__________________1M 1/4W Resistor
  • R7_________________20K 1/2W Trimmer Cermet
  • C1________________100nF 63V Polyester Capacitor
  • C2_________________47nF 63V Polyester Capacitor
  • C3________________470nF 63V Polyester Capacitor
  • C4_________________15nF 63V Polyester Capacitor
  • C5,C9_______________1µF 63V Electrolytic or Polyester Capacitors
  • C6,C8______________47µF 63V Electrolytic Capacitors
  • C7________________100pF 63V Ceramic Capacitor
  • IC1_______________TL072 Dual BIFET Op-Amp
  • SW1________________DPDT Switch (four poles for stereo)

Technical data:

Frequency response referenced to 1KHz and varying control knob positions:

Frequency response referred to 1KHz and different control knob positions

Total harmonic distortion at all frequencies and 1V RMS output: <0.01%

Notes:

  • SW1 is shown in “Control flat” position.
  • The schematic illustrates only the left channel; therefore, for stereo operation, all components except IC1, C6, and C8 must be duplicated.
  • The numbers enclosed in parentheses denote the pin connections for IC1 in the right channel.
  • R7 should be adjusted to achieve maximum, undistorted output power utilizing a standard music program source and with P1 rotated fully clockwise.

**TL072 Dual BIFET Op-Amp Details:** The TL072 is a low-power, rail-to-rail op-amp commonly used in audio circuits due to its low noise, high input impedance, and good performance across a range of frequencies. It's a versatile component suitable for various amplifier stages.
