Mains LED Circuit: 100-240V AC Schematic
Description
This is a straightforward and effective LED circuit designed for direct operation from an alternating current (AC) supply ranging from 100 volts to 230 volts. The circuit serves effectively as a mains power indicator or a nighttime lighting solution. The resistor R1, R2, and capacitor C1 provide the required current restriction. The circuit demonstrates resilience against voltage fluctuations and overloads.

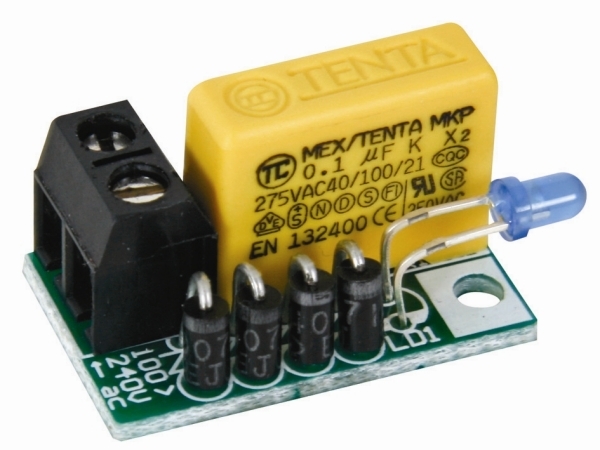

Circuit's pictures:

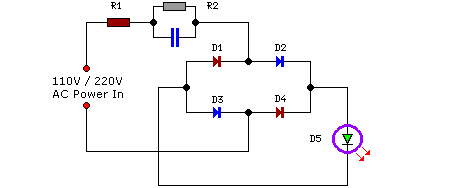

Circuit diagram:
Parts:
- D1 = 1N4007
- D2 = 1N4007
- D3 = 1N4007
- D4 = 1N4007
- R2 = 1M-1/2W
- R1 = 470R-1/2W
- C1 = 220nF-275vAC
- D5 = 5mm. Blue LED
Features:
- Compact in size!
- Blue LED operational on mains voltage
- Suitable for use as a mains indicator or other pilot lights
- For safe guidance, such as staircases and corridors…
- Incorporates a special X2 safety capacitor
- Operates on 100Vac to 240Vac at 50Hz or 60Hz
- Dimensions: 28x18mm / 1.10 x 0.71"
Note:
- For utilization only within an enclosure
- The capacitor C1 may be implemented as a polyester type.
- A white LED may also be used in this circuit.
- Assemble the circuit onto a general-purpose printed circuit board (PCB).
Safety and Hazard WARNINGS:
This circuit operates with a dangerous power voltage. The circuit must be mounted within a protective casing prior to applying alternating current (AC) power. Modifications to the circuit are prohibited – a 10-minute wait period is required before any physical contact is made with the circuit after disconnection of the AC power. This circuit is not intended for use by children.
