9V FM Transmitter Circuit: Build Your 100m Range

Description

This FM transmitter boasts a reach of approximately 100 meters utilizing a 9V Direct Current supply. The circuit is constructed with three distinct phases. The initial stage incorporates a microphone preamplifier utilizing a BC548 transistor. Subsequent to this, a VHF oscillator is implemented around another BC548. (BC series transistors are frequently employed in low-frequency applications, however, they also perform adequately within Radio Frequency stages when functioning as oscillators.) The final phase is a Class-A tuned amplifier that enhances the signals generated by the oscillator. Incorporating this supplementary RF amplifier expands the transmitter's operational range.

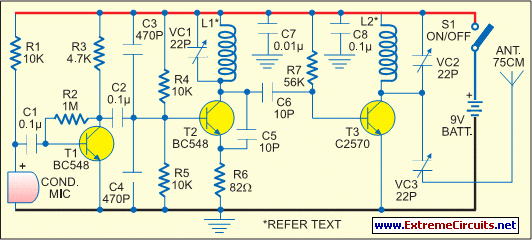

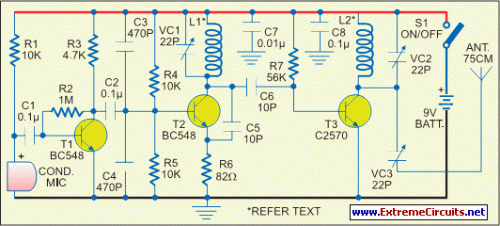

Circuit diagram:

Coil L1 consists of four turns of 20SWG insulated copper wire wound to a length of 1.5cm around a 4mm diameter air core. Coil L2 comprises six turns of 20SWG insulated copper wire wound on a 4mm diameter air core. A 75cm length of wire is utilized as the antenna. To achieve optimal performance, a sensitive receiver should be employed. VC1 is a variable resistor type trimpot used for frequency adjustment. VC2 necessitates adjustment for maximizing the transmission range. The transmitter unit is powered by a 9V PP3 battery. This transmitter can be readily integrated with a commercially available FM receiver kit to create a functional walkie-talkie system.
