UM3561 Sound Effects Generator Circuit Diagram - Build Your Own!

Description:

This schematic employs a UM3561 integrated circuit to generate a range of distinct auditory effects.

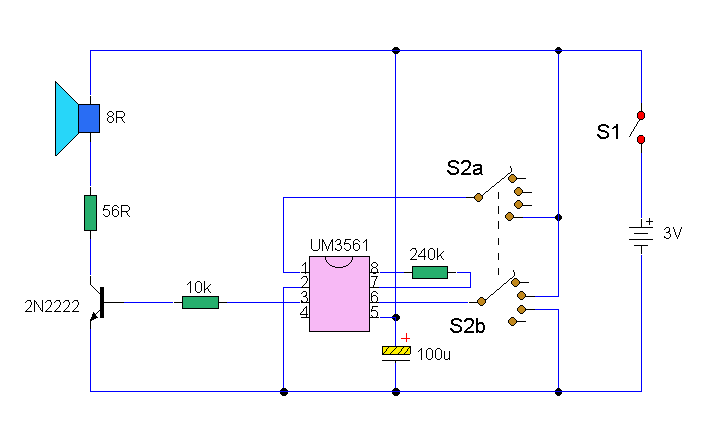

Circuit diagram

Notes:

The design is relatively straightforward. The integrated circuit is responsible for creating all the sound effects, with the output signal from Pin 3 being amplified via a transistor. A 64-ohm loudspeaker can be used as a replacement for the standard 56-ohm resistor and an 8-ohm loudspeaker. A two-pole, four-way switch regulates the activation of the various sound effects. Position 1, as depicted, generates a police siren sound, position 2 produces a fire engine sound, position 3 simulates an ambulance, and position 4 generates a machine gun effect. This integrated circuit was manufactured by UMC and was previously obtainable from Maplin electronics under the code UJ45Y. Currently, this component has ceased to be manufactured, however, some limited quantities remain in stock.

Integrated Circuit Details: UM3561

The UM3561 is a versatile integrated circuit designed for generating a wide variety of audio effects. This monolithic chip contains several amplification stages and waveform generators, allowing it to produce diverse sounds like sirens, beeps, and various other electronic noises. Typically, the UM3561 operates from a supply voltage of 5V to 15V and utilizes its output pins to drive external amplification circuitry. Its internal circuitry is optimized for low power consumption while still providing sufficient audio output for numerous applications. It consists of a voltage controlled oscillator (VCO) and multiple amplification stages, making it suitable for both simple and complex sound effects generation. It’s essential to consult the manufacturer's datasheet for precise pin configurations and operational parameters. Its serial number is UJ45Y, and it was produced by UMC.
