Build Your 8 Sound Effects Generator with HT2884

Description:

This schematic utilizes the Holtek HT2884 integrated circuit to create eight distinct audio effects. It is a versatile component ideal for sound design projects.

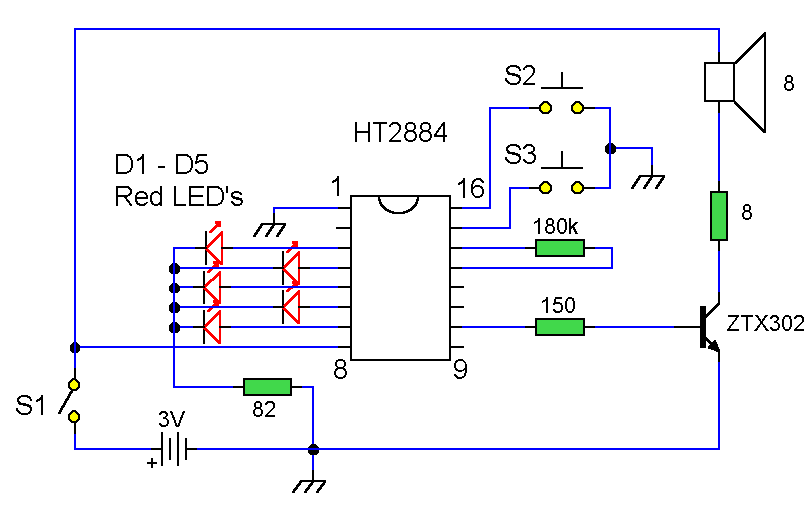

Circuit diagram

Notes:

All audio effects are internally generated by the HT2884 integrated circuit. A 3 Volt battery is employed as the power source, however, the IC functions effectively with voltages ranging from 2.5 to 5 Volts. Switch S1 serves as the power on/off switch. The output signal from pin 10 is amplified and connected to a small 8-ohm loudspeaker. A single press of S3 triggers the sequential playback of all the sounds. S2 enables the selection of a single sound effect; subsequent presses produce the next sound effect. The schematic incorporates two laser weapons, a dual-tone horn sound effect, two explosion sounds, two machine gun sounds, and a rifle shot sound. The standby current is approximately 1 uA at 3 Volts, resulting in excellent battery life. The HT2884 integrated circuit can be procured from Maplin Electronics using order code AZ52G.

Integrated Circuits Details:

The Holtek HT2884 is a versatile integrated circuit commonly used in sound effect generators. This component is a digital audio effects processor that incorporates a microcontroller and various audio processing functions. It is typically programmed to produce a range of sounds, including those featured in this schematic. The IC's primary function is to convert digital signals into analog audio signals, offering a compact and efficient solution for generating a diverse collection of sounds. This IC allows for sophisticated sound design, providing the user with precise control over the generated audio effects. It has several input and output pins allowing for connection to different components, making it suitable for various applications. Its operational range, from 2.5V to 5V, provides flexibility in power supply choices. The IC’s internal memory stores the programmed sound effects, ensuring consistent performance across multiple uses. Furthermore, its low standby current consumption minimizes power waste and extends battery life. The integrated circuit is manufactured by Holtek and commonly available from electronics distributors like Maplin Electronics, as indicated by order code AZ52G.
