Build Your Own 10K Volt Meter from a Milliamp Meter

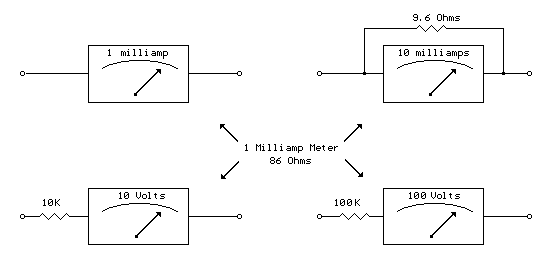

Circuit Diagram

A microampere meter can be utilized as a voltmeter by incorporating a series resistance. The required resistance is determined by dividing the complete-scale voltage reading by the complete-scale current of the meter movement. Consequently, when utilizing a 1 microampere meter and aiming to measure a range of 0-10 volts, a total resistance of 10/0.001 = 10,000 ohms is necessary. The meter movement possesses a small inherent resistance, which constitutes a minor component of the overall 10,000 ohms, and it’s generally negligible. The meter in the example below has a resistance of 86 ohms, meaning the actual resistor value needed would be 10,000 - 86, or 9,914 ohms. However, employing a 10,000 standard value is within 1% accuracy, rendering the 86 ohms insignificant. For a complete-scale reading of 1 volt, the meter’s resistance becomes more prominent, accounting for approximately 8% of the total 1,000 ohms required. Therefore, a 910 ohm resistor, or a 910 standard value, would likely be preferred. The microampere meter can also be employed to measure elevated currents by adding a parallel resistance. The meter’s resistance now plays a considerably larger role, as increasing the range by a factor of ten necessitates bypassing 9/10 of the total current via the parallel resistor. To transform the 1 microampere meter into a 10 microampere meter, a parallel resistor of 86/9 = 9.56 ohms is needed.

More about components

Integrated circuits, often referred to as ICs, represent complex electronic circuits miniaturized onto a single semiconductor chip. These components perform specific functions, such as amplification, switching, or logic operations. A common example is a 555 timer IC, a versatile chip capable of generating precise time delays or oscillating signals. The 555 timer is a monolithic integrated circuit containing multiple transistors, resistors, and capacitors arranged to create a stable oscillator. It is widely used in applications requiring pulsed signals, timing circuits, and voltage control. Another frequently used IC is a 74HC series, such as the 74HC555, which is a high-speed CMOS logic gate integrated circuit. These ICs are designed to operate over a wide voltage range and offer low power consumption, making them suitable for a variety of digital circuits and signal processing applications. The 74HC555 is a versatile timing IC that can be configured as an astable multivibrator, monostable multivibrator, or bistable multivibrator. Furthermore, operational amplifier ICs like the LM741 are widely utilized for amplification tasks. These chips contain multiple transistors and resistors and capacitors, enabling the amplification of voltage signals. They are fundamental components in audio amplifiers, instrumentation, and various other electronic systems.
