Build Your 2X5W TDA1516Q Stereo Amplifier Circuit

Description

A straightforward STEREO amplifier, requiring a very small number of external elements. The circuit utilizes a single operational amplifier, delivering a maximum output power of 2 x 5W into a 4-ohm load, accompanied by a distortion level of 0.5%. The capacitor C5 should be positioned in close proximity to the pins of the IC1. It is recommended that IC1 be mounted onto a heatsink to ensure proper thermal dissipation.

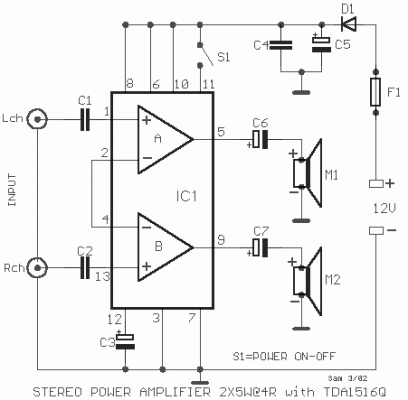

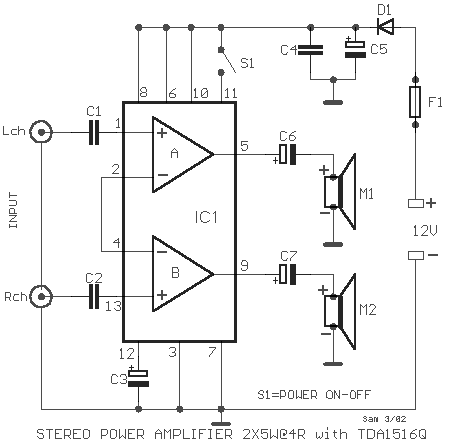

Circuit diagram
