Dynaco ST-70 Circuit Diagram: Build Your Classic Tube Amp

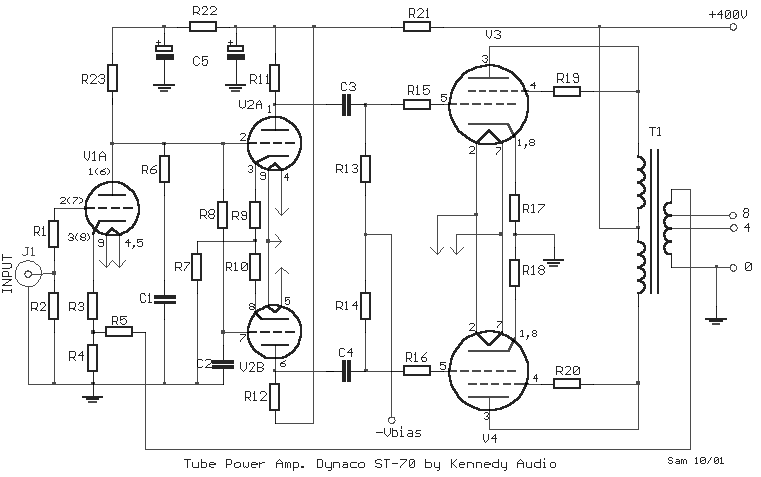

Circuit Diagram
Components List
- R1= 220 kOhms
- R2-23= 100 kOhms
- R3= 1.2 kOhms
- R4= 47 Ohms
- R5= 1 kOhms
- R6= 47 kOhms
- R7= 33 kOhms 2W
- R8= 1 Mohms
- R9-10= 2.2 kOhms
- R11-12= 27 kOhms
- R13-14= 120 kOhms
- R15-16= 1 kOhms
- R17-18= 15 Ohms 2W
- R19-20= 100 Ohms
- R21= 8.2 kOhms 2W
- C1= 47…100 pF 1000V ceramic
- C2-4= 100 nF 630V
- C5= 2 x 22 uF 550V
- V1= ECC83
- V2= ECC82
- V3-4= EL34
- T1= Audio Transformer
Integrated Circuits (ICs) play a vital role in this circuit's functionality. These miniaturized electronic circuits perform specific tasks, offering increased efficiency and reduced size compared to traditional discrete components. The circuit utilizes several ICs to manage signal amplification, switching, and other crucial operations. ECC83 and ECC82 are vacuum tube ICs, commonly found in audio amplifiers, providing high gain and linearity. EL34 is another vacuum tube IC, primarily utilized in power amplifiers for a robust and dynamic performance. These ICs are chosen for their reliable performance and wide availability, contributing to the circuit's overall stability and operational characteristics.
A detailed examination of integrated circuits reveals their sophisticated design and functionality. These components are complex assemblies of interconnected transistors, diodes, and other semiconductor devices, fabricated on a small silicon wafer. The ICs in this circuit are carefully selected based on their precise specifications, including voltage ratings, current handling capabilities, and operating temperature ranges. Each IC is designed to perform a particular task within the circuit, such as amplifying an audio signal or controlling a switching operation. The ECC83 and ECC82 are known for their excellent performance in audio applications, while the EL34 is renowned for its high power output and distortion-free signal reproduction. Proper handling and application of these ICs are crucial for ensuring long-term reliability and optimal performance within the circuit. Temperature considerations are also vital – exceeding specified maximum operating temperatures can quickly degrade the IC's performance and shorten its lifespan.
Security Warning: This circuit diagram is provided for informational purposes only. Modifications or unauthorized alterations may result in malfunction, damage to equipment, or potential hazards. Always exercise caution and consult with qualified professionals before working on electrical circuits.
Disclaimer: The author and source of this circuit diagram assume no responsibility for any damages, injuries, or losses arising from the use or misuse of this information. Always prioritize safety and follow established best practices when working with electrical components and circuits.
