Build Your 2-Channel Headphone Amplifier Circuit Diagram

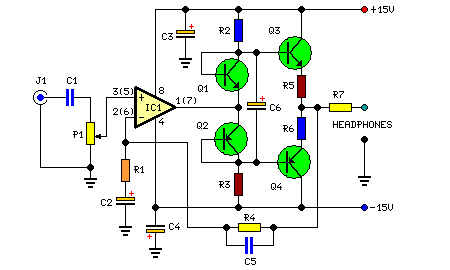

Circuit Diagram:
Components:
- P1 = 22K Ohm resistor
- R1 = 560 Ohm resistor
- R2 = 10K Ohm resistor
- R3 = 10K Ohm resistor
- R4 = 12K Ohm resistor
- R5 = 2.2 Ohm resistor
- R6 = 2.2 Ohm resistor
- R7 = 22 Ohm - 1/2W resistor
- Q1 = BC337 transistor
- Q2 = BC327 transistor
- Q3 = BC337 transistor
- Q4 = BC327 transistor
- C1 = 1µF - 63V capacitor
- C2 = 100µF - 25V capacitor
- C3 = 100µF - 25V capacitor
- C4 = 100µF - 25V capacitor
- C5 = 22pF - 63V capacitor
- C6 = 22µF - 25V capacitor
- IC1 = NE5532 integrated circuit
- J1 = RCA audio input socket
Notes:
- This circuit can be seamlessly linked to CD players, tuners, and tape recorders.
- It has undergone testing with various headphone models exhibiting differing impedances: 32, 100, 245, 300, 600 & 2000 Ohm.
- Older 8 Ohm impedance headphones may be driven, however, these outdated devices are not encouraged.
- The schematic depicts the left channel along with the associated power supply, which is shared between both channels.
- The numbers enclosed in parentheses denote the pin connections for IC1 in the right channel.
- Proper grounding is crucial for minimizing hum and mitigating ground loops. Connections should be made to the same point for J1, P1, C2, C3 & C4. Subsequently, independently connect the input and output grounds to the power supply ground.
