Discrete 8-Bit PWM Generator Circuit Design

Description

Pulse-width modulation (PWM) signals are frequently utilized to regulate the rotation speed of DC motors. The duty cycle of the digital waveform can be determined either through the application of a variable analog voltage level (as in a NE555-based PWM generator) or digitally, utilizing binary values. Digitally derived PWM waveforms are predominantly created by timer/counter modules within microcontrollers, though it is also relatively straightforward to generate these signals employing discrete logic components if a microcontroller is not desired.

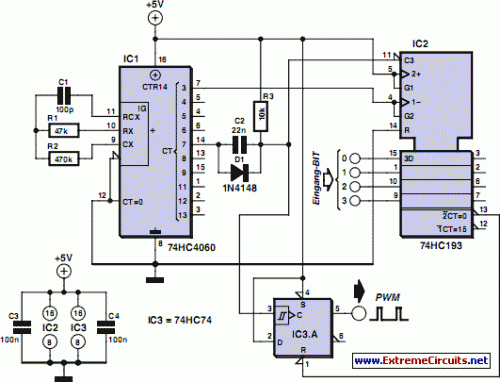

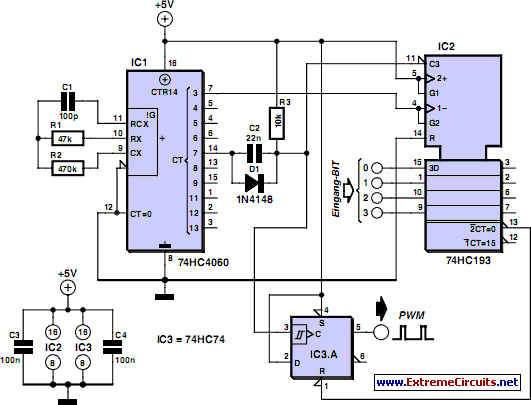

Circuit diagram:

An expansion of the illustrated circuit can yield two PWM waveforms stemming from an 8-bit digital input word. Each signal possesses 15 distinct values. The 8-bit word can originate, for example, from an expansion board integrated into a PC, or from an 8-bit port of a processor lacking built-in PWM capabilities, or from a laptop’s printer port. The mark/space ratio is only configurable up to 15/16, rather than 16/16; a binary input of 0000 generates a continuous low output on both outputs, disabling both motors.

Similar circuits often incorporate a dedicated ‘enable’ input to deactivate the motors, although this is not required within this design. The diagram outlines the circuitry needed to produce a single waveform. For the complete two-channel circuit, an additional 74HC193 is necessary. The clock signal produced by the HCF4060 generator can drive both channels, and the free flip-flop within the 74HC74 package can be utilized for the second channel (corresponding pin numbers are indicated in parentheses). Consequently, the entire two-channel circuit can be constructed utilizing only four ICs.
