12V DC Dimmer Circuit: Build Your Own Mood Lighting

Description

A variable resistor is notably uncommon in recreational vehicles or upon vessels. Here, a method for its creation is outlined. Consequently, if adjustment of ambient illumination is desired whilst hosting guests or companions, this schematic provides the means to accomplish this. Developing a dimmer for 12 V represents a complex undertaking. Dimmer switches commonly utilized in domestic settings are engineered to function using alternating current and rely on this AC voltage as a core operational element. Given the requirement to commence with 12 V DC, the creation of AC voltage must be undertaken independently.

More about components

The core of this circuit utilizes a 555 timer IC. This integrated circuit is a versatile and widely used component in digital electronics. Specifically, the 555 timer is configured as an astable multivibrator, generating a continuous stream of pulses. These pulses are then filtered and amplified to control the brightness of the lamps. The 555 timer’s operation is based on the comparison of two voltage levels, creating a timing circuit. This circuit produces square waves, which are subsequently shaped into a waveform suitable for controlling the lamp dimming. The 555 timer’s precise timing capabilities, combined with external resistors and capacitors, enable accurate control over the output signal, and consequently, the lamp brightness. Its widespread availability and relatively simple operation make it an ideal choice for this application.

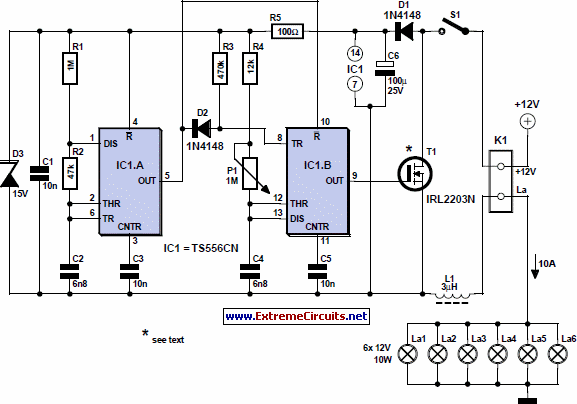

Circuit diagram:

It is also essential to consider the operation of equipment powered by batteries and to conserve energy. The circuit ultimately developed can readily power six lamps of 10 W each. Fewer lamps are, of course, also possible. In any case, the total current must remain below 10 A. L1 and S1 can be adjusted to accommodate lower current needs, as required. Note that the entire circuit will also function from 6 V.
