Build Your Ideal Buffer: Class A Circuit Diagram (560Ω)

Description

A device frequently employed for separating two stages within audio circuits is a component that provides isolation. This circuit incorporates an amplification stage, possessing a gain of X1, utilizing only localized negative feedback, resulting in minimal distortion levels. Careful matching of the components, particularly the resistors connecting the stages, is essential. Furthermore, thermal coupling between the transistors and the diodes D1 and D2, alongside the transistors Q5 and Q2 respectively, must be implemented for optimal performance.

More about components

Integrated circuits, commonly known as ICs, are complex semiconductor devices containing multiple electronic components, such as transistors, diodes, and resistors, fabricated on a single small silicon chip. They are widely used in electronic circuits due to their small size, low power consumption, and high performance. The BC560C and BC550C transistors within this circuit are examples of these versatile components. These NPN bipolar junction transistors are frequently used in amplification, switching, and signal processing applications. They operate by controlling the flow of current between their collector and emitter terminals, based on the voltage applied to their base terminal. These ICs are fundamental building blocks in many electronic devices, offering a compact and efficient solution for various circuit functions.

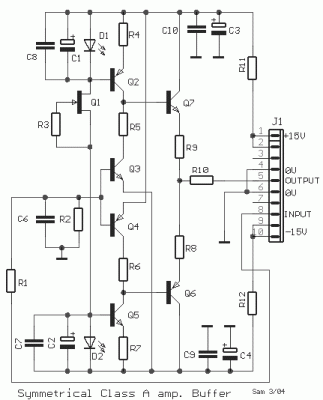

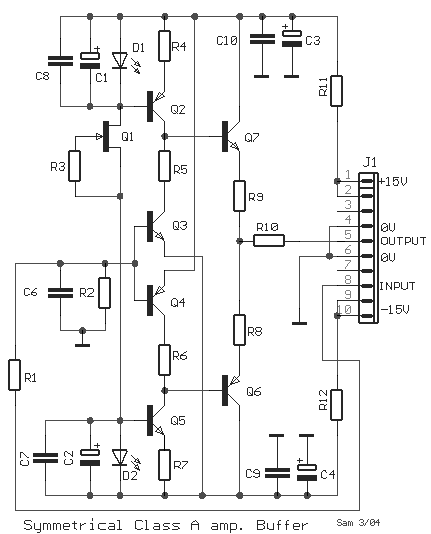

Circuit diagram

Part List

All Resistors is 1/4W 1%
